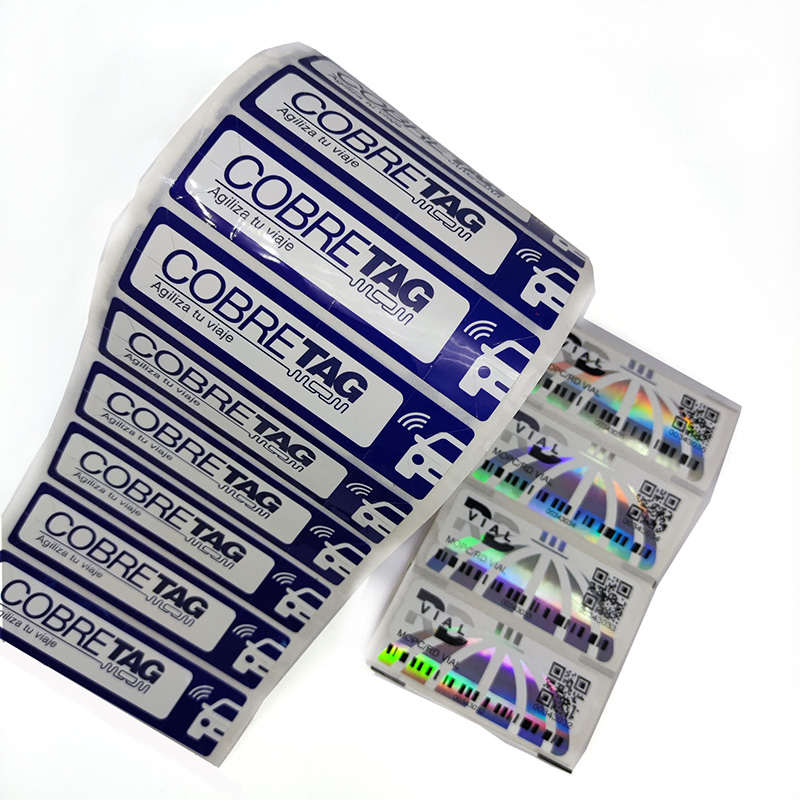

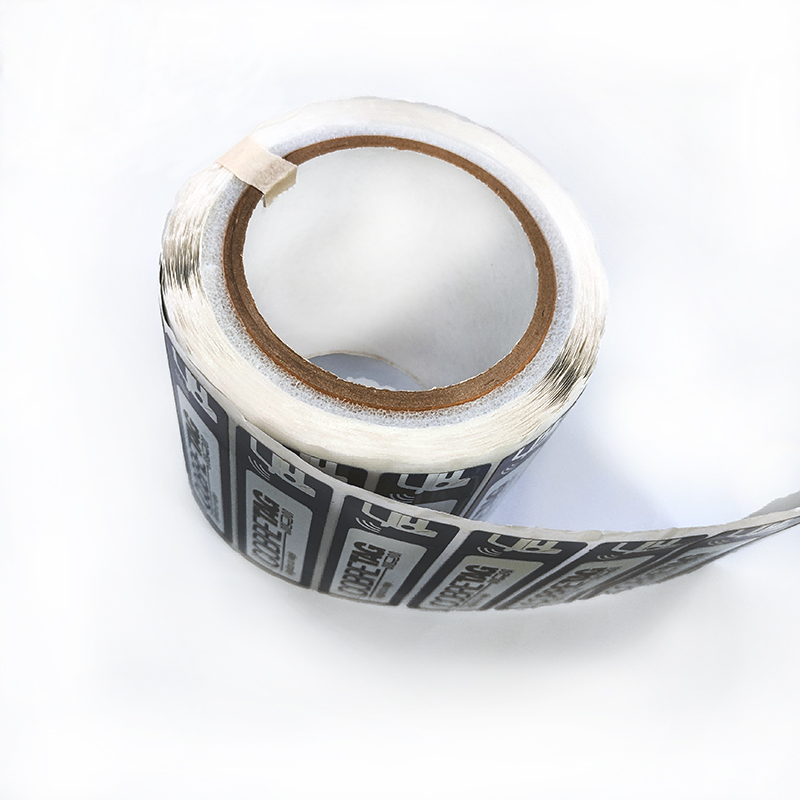

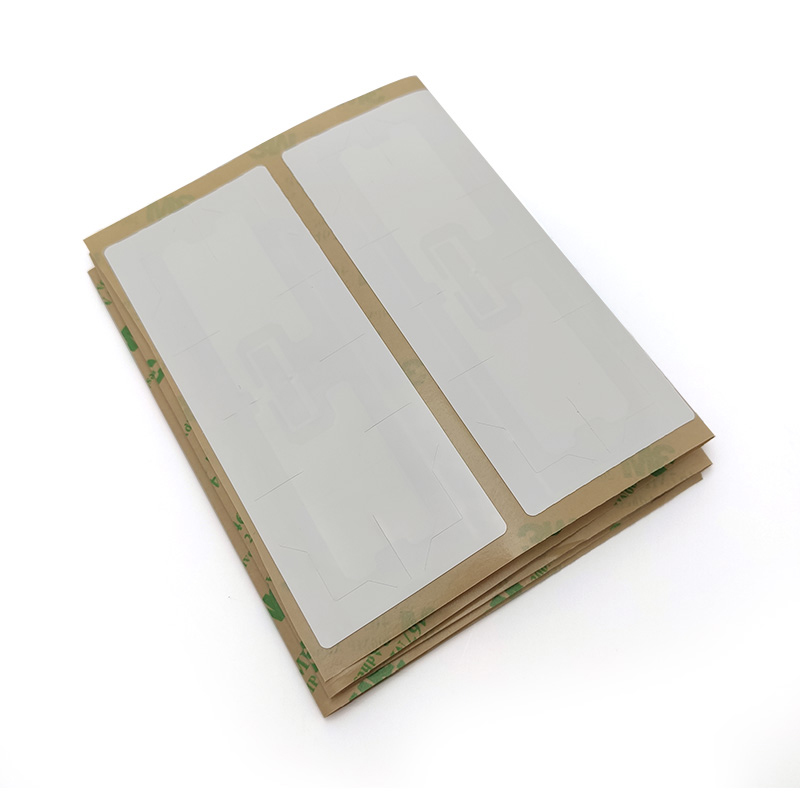

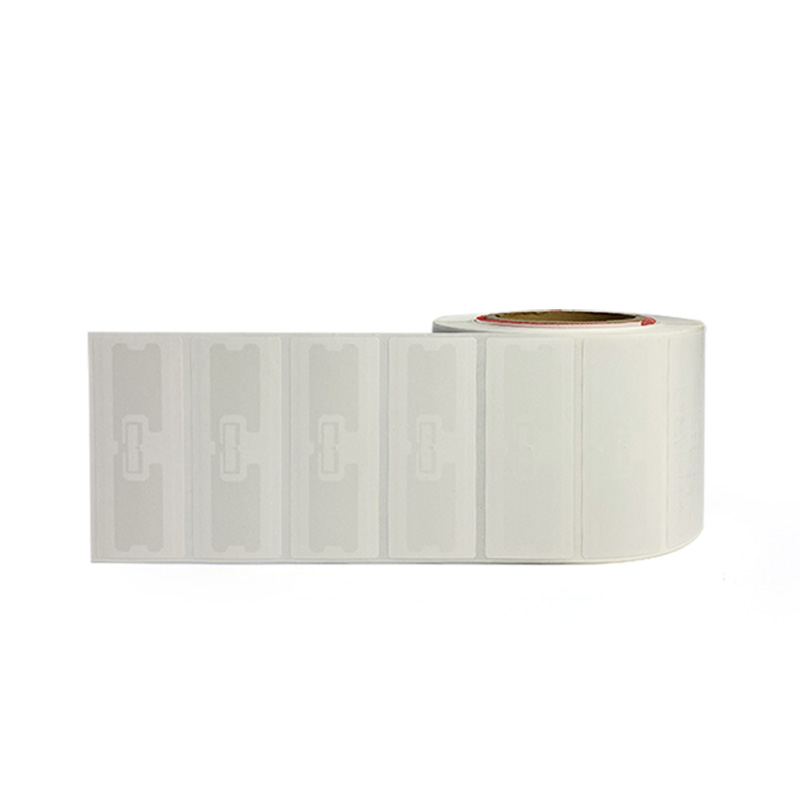

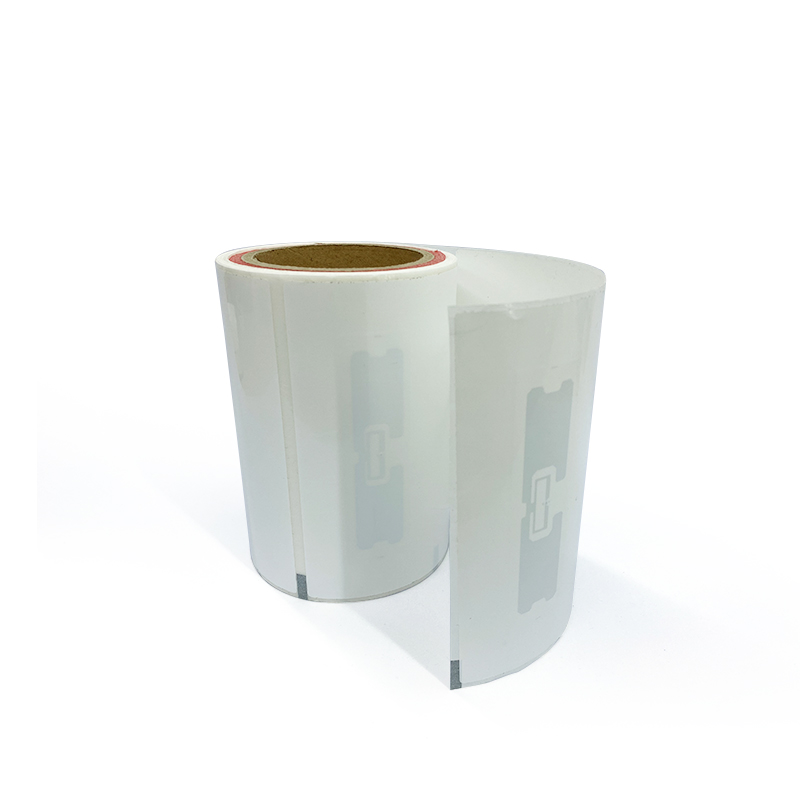

Vehicle Tracking Windshield RFID UHF Stickers

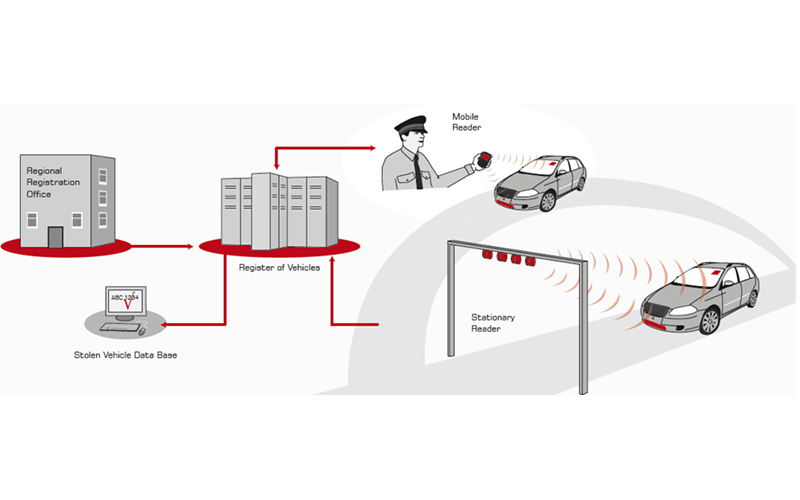

UHF Windshield Label is an ultra-high frequency (UHF) RFID tag designed for vehicle management. It is made of flexible materials with strong UV resistance and weather resistance. It can be directly attached to the inside of the car windshield to achieve long-distance, contactless vehicle identification. It is suitable for electronic toll collection (ETC), parking lot management, fleet tracking, smart transportation and other scenarios, supports high-speed mobile reading and batch identification, and significantly improves traffic efficiency and data accuracy.
- Feature
- Parameter
- Details
- Related Solutions
FEATURE
-

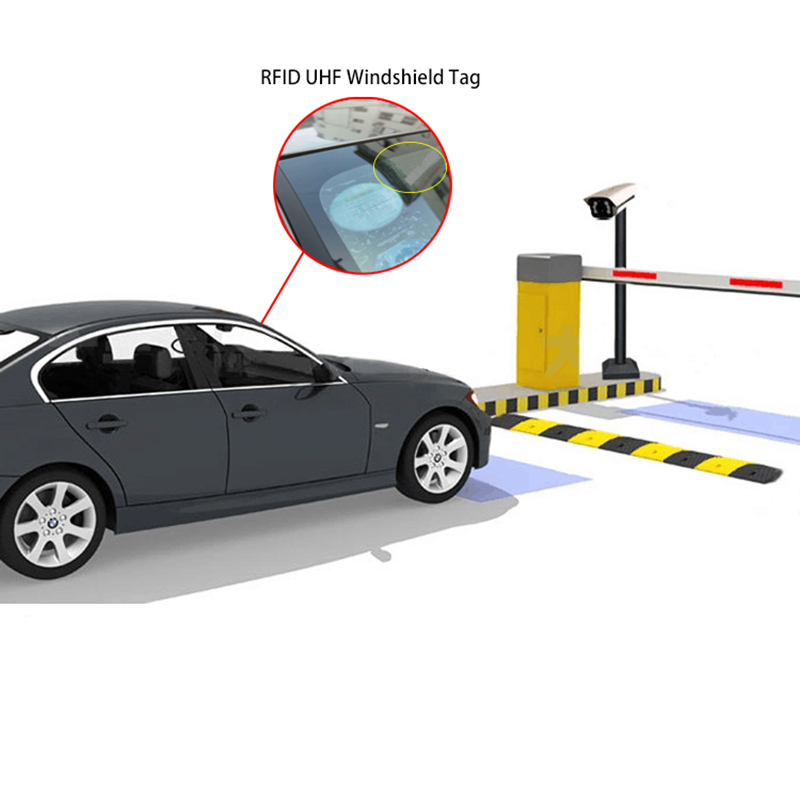

Minimal deployment: Stick it on and use it, no need to modify the vehicle structure or install external equipment.
-
Efficient traffic: Support high-speed mobile reading, reduce congestion and manual intervention costs.
-
Accurate data: Unique ID binds the vehicle to avoid misreading or occlusion problems of traditional license plate recognition.
-

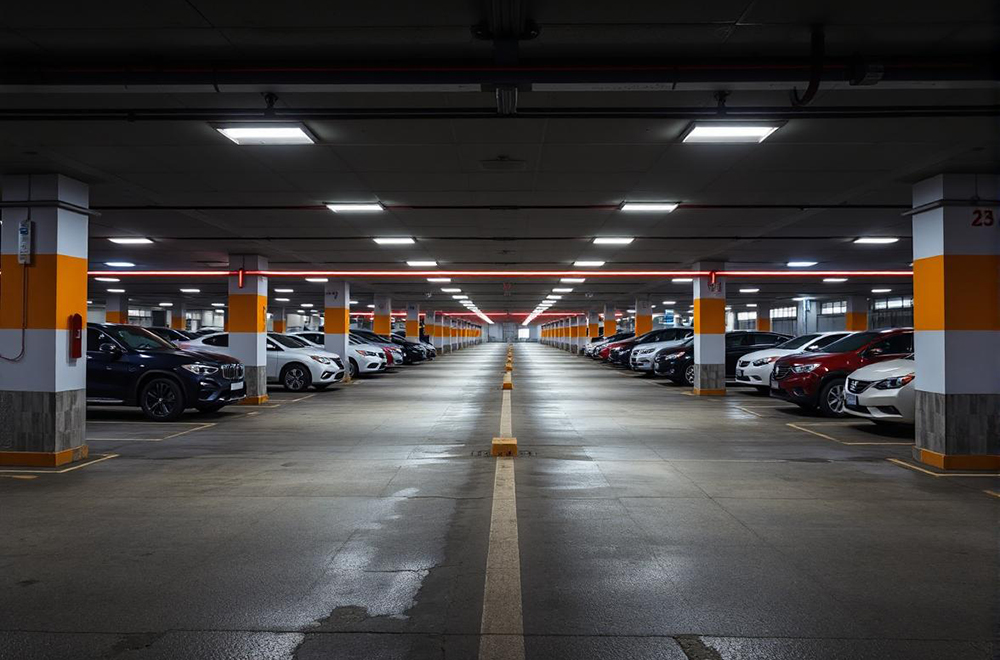

Cost optimization: Low cost per label, suitable for large-scale vehicle deployment (such as logistics fleets, shared travel platforms).
RFID label is widely used for vehicle management, apparel and other industries. Radio frequency identification (RFID), is one of the most promising technological innovations. 9654 UHF antenna is particularly well-suited for windshield and plastic item those materials are high-dielectric. Common application for 9654 UHF label are: Vehicle windshield, Totes and containers, Reusable plastic pallets, etc.
PARAMETER
| PROPERTY | DETAIL |
|---|---|
| Antenna size | 93*19 |
| Label die-cut | 96.5*23.2mm (minimum), support custom size |
| Qty/feel | 5000pcs |
| Core ID | 76mm/ 3inch |
| Antenna | Etched Aluminum |
| Substrate | PET |
| Face Material | coated paper ( Optional: PET, PVC，synthetic paper ) |
| Special | Adhesive side with custom logo printed |
| Unique Print | Double side Logo & UID & QR Print Available |
| Adhesive | Yes, Permanent |
| Frequency | 860-960Mhz |
| IC | Alien Higgas,9 |
| TID | 96bits |
| Memory | 688bits (EPC) |
| Security | 32 Bits access password, 32 Bits kill password |
| Reading range | 3-12 meters |

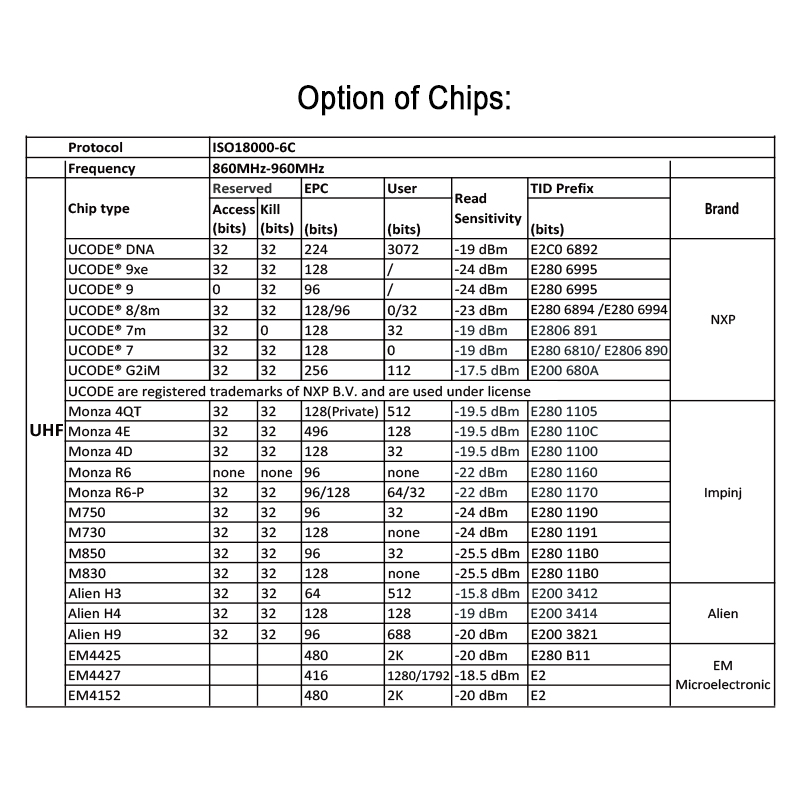

DETAILS
