Waterproof and heat resistant RFID Jewelry Label
UHF 860-960Mhz PET Waterproof and heat resistant RFID Jewelry Label
- Feature
- Parameter
- Details
FEATURE
Applicable for metallic material jewelry
Excellent On Metal reading sensibility
Strong Self-adhesive
Resistant to long-hour heat lighting
Fine printing effect
860-960Mhz UHF RFID Jewelry Label is suitable to adhesive on any metallic surface. The label is optional for basic customization logo, also support advance personalisation data printing requirement, such as UID, Serial number and QR code printing etc. Anti-collision function on the UHF chip allows multiple RFID tags to be read in the field at the same time. Meanwhile, it could also be set to just locate a single tag by the scanner.
PARAMETER
| PROPERTY | DETAIL |
|---|---|

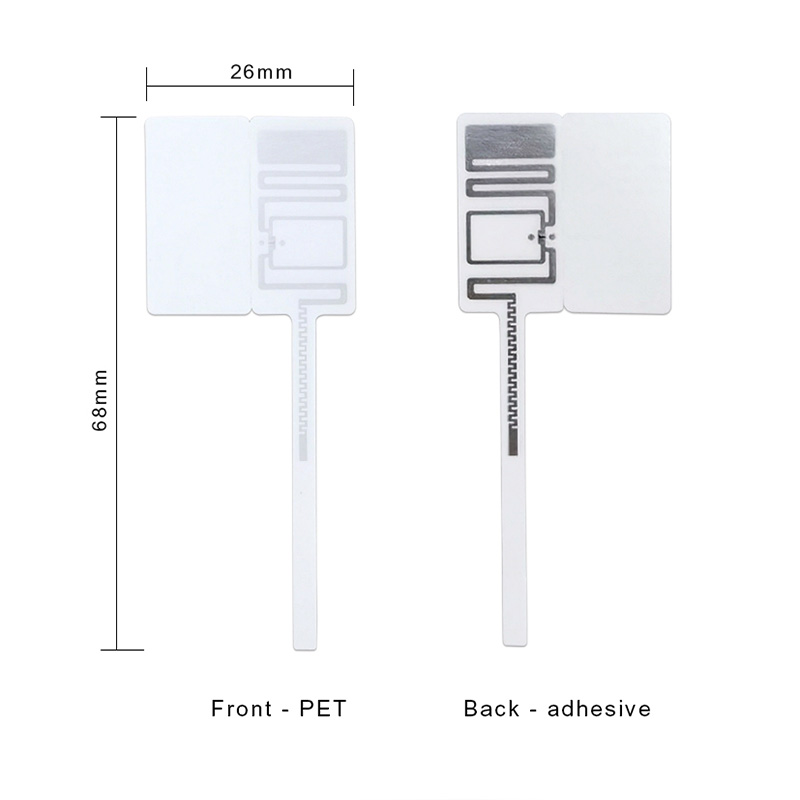

| Antenna size | 40*10.9 |

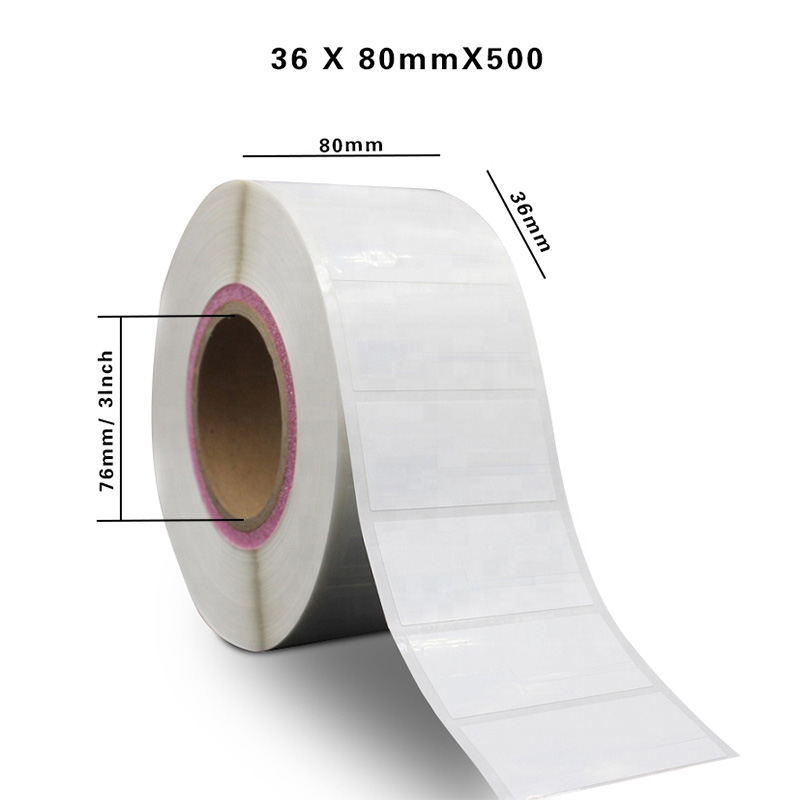

| Label die-cut | 66.5*26mm (minimum), support custom size |
| City/reei | 2500pcs |
| Core ID | 76mm/3inch |
| Antenna | Etched Aluminum |
| Face Material | PET |
| Optional | coated paper, PVC synthetic paper |
| Unique Print | Logo & UID & QR Print Available |
| Adhesive | Yes, Permanent |
| Re-Printing Option | Thermal Transfer |
| Frequency | 860-960Mhz |
| Protocol | ISO/IEC18000-6C EPCglobal Class 1 Gen 2 |
| IC | NXP UCODE 9 |
| TID | 96bits |
| Memory | 128bits (EPC) |
| Security | 32 Bits access password 32 Bits kill password |
| Reading range | 3-5 meters |
DETAILS
