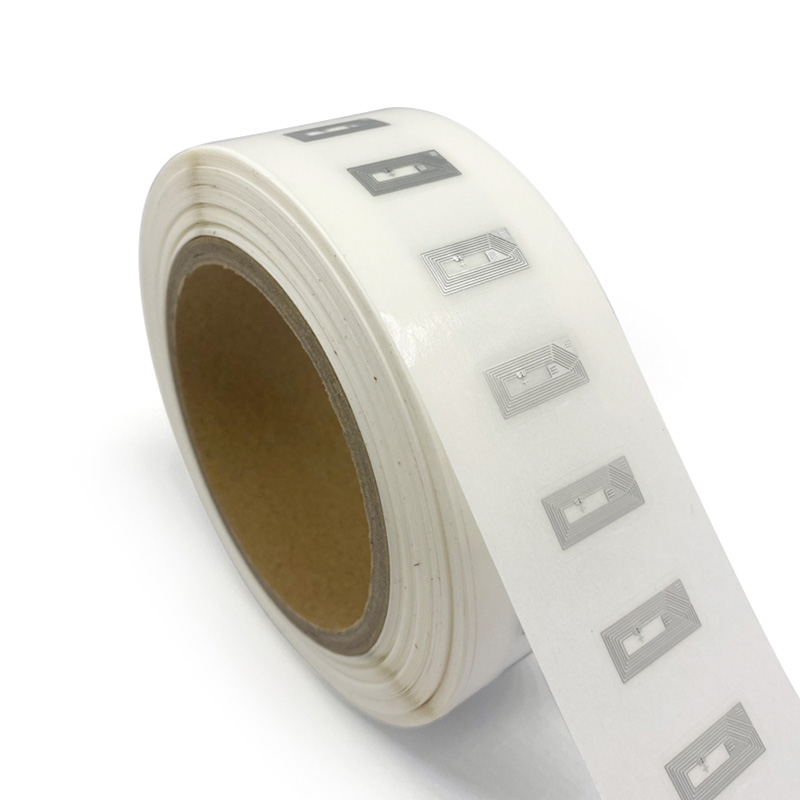

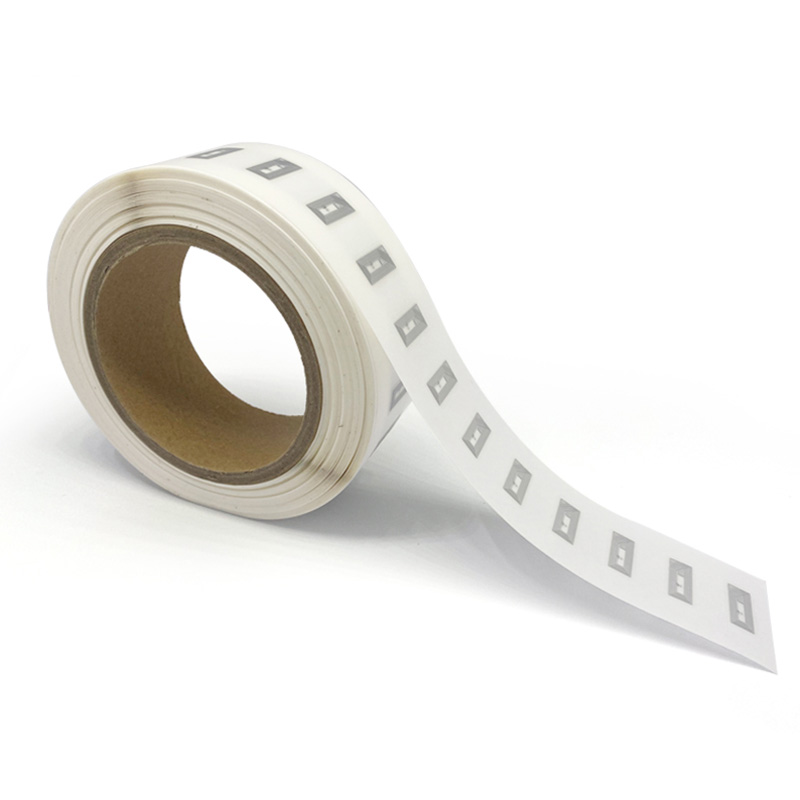

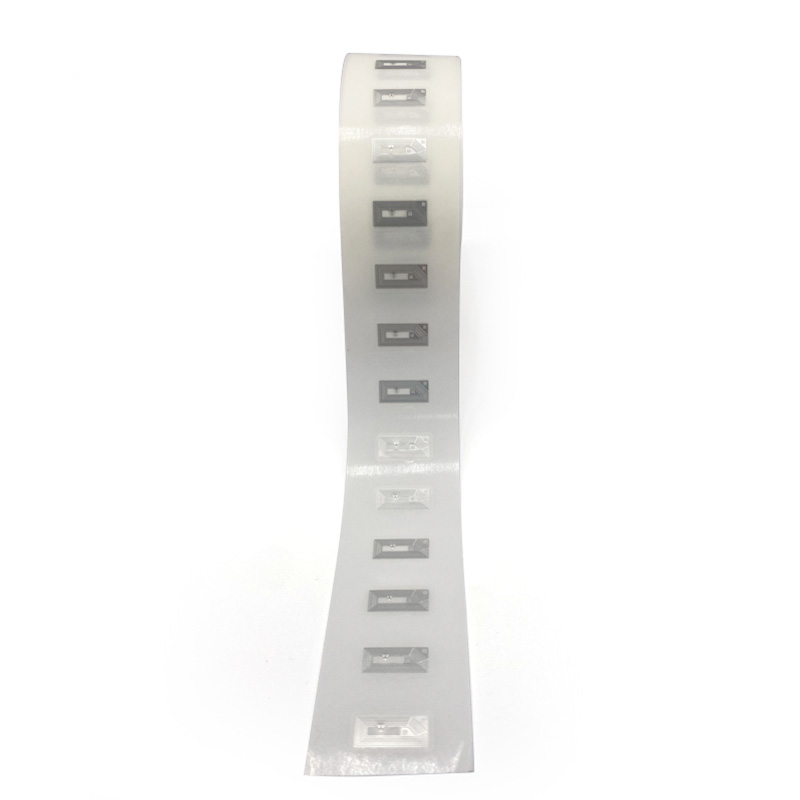

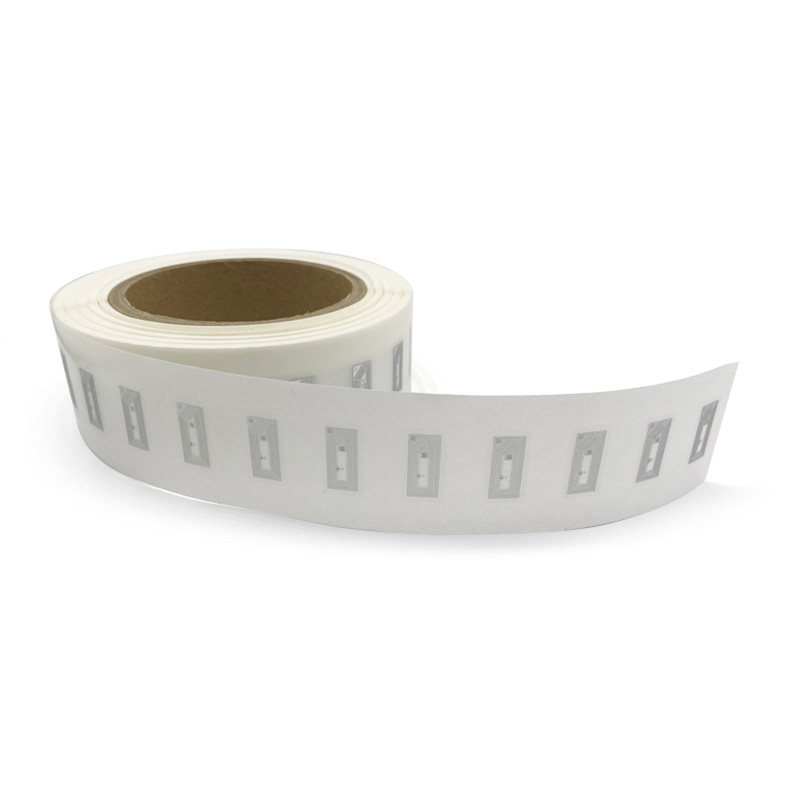

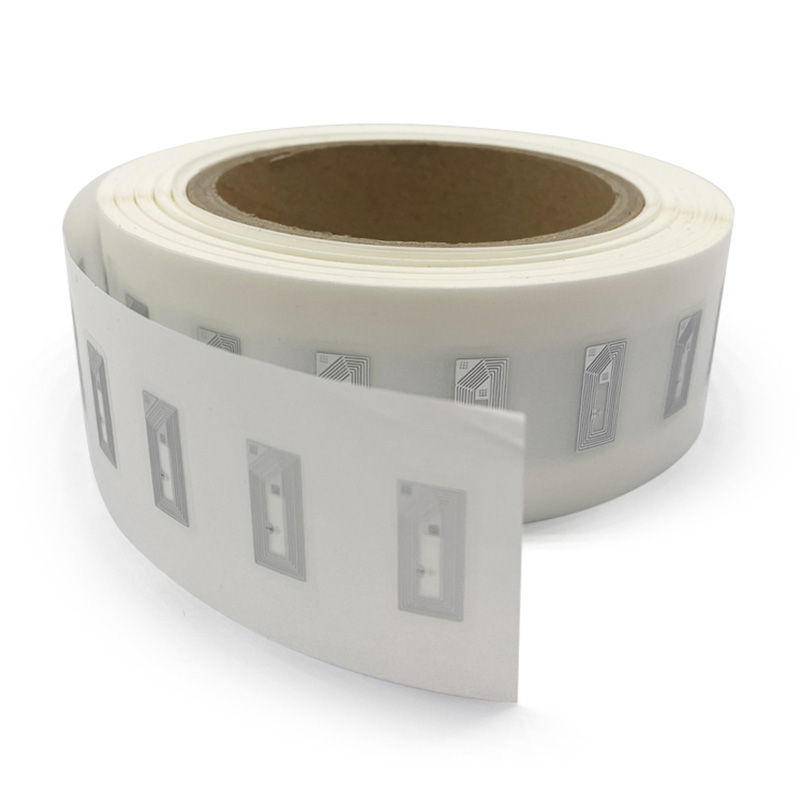

Programmable Customized RFID HF Wet Inlay

ISO 14443A NFC inlay with NTAG 424 DNA chip is flexible to embed into other product or sticker, higher security for NFC data encoding needs and it’s easy to scan by NFC enable smartphone for produce authentication.

Inquiry

Feature
Parameter
Details

FEATURE

Reproducible
Heat-resistance
Excellent reading performance
Embeddable

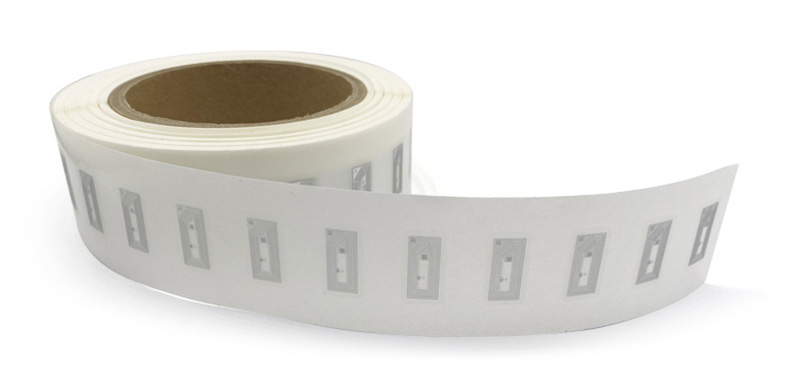

Optional in Dry inlay and Wet inlay format. NFC chip are bonded into the aluminum antenna with PET substrate. The overall thickness is 0.2mm, high flexibility makes the Inlay perfect to insert into other materials to produce the smart NFC tag. At the same time, the PET substrate is high temperature resistant and waterproof. The NXP NTAG424 chip has 50 year data retention and 416 Bytes of user memory, the powerful and advance AES-128 security features suit the needs for product authentication and anti-counterfeit.

PARAMETER

PROPERTY	DETAIL
Antenna size	35*22mm
Label die-cut	40*25mm
Qty/reel	2500pcs
Core ID	76mm/3inch
Substrate	PET
Frequency	13.56MHz
Protocol	ISO/IEC14443Type-A
IC	NXP NATG 424 DNA
UID	7byte UID
Memory	416 bytes
Write endurance	200.000 cycles
Security	EAL4,AES-128
