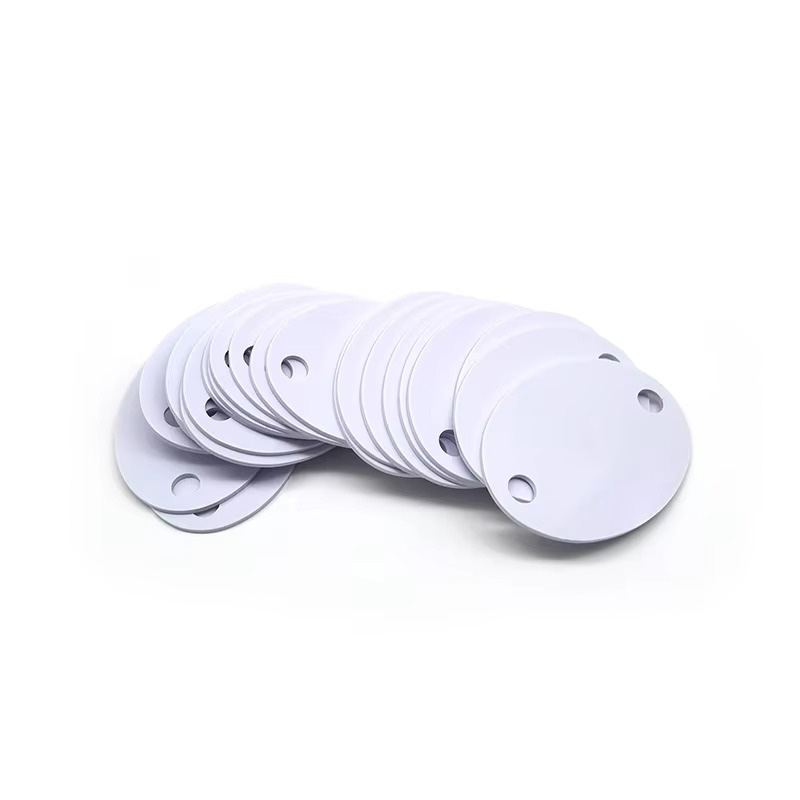

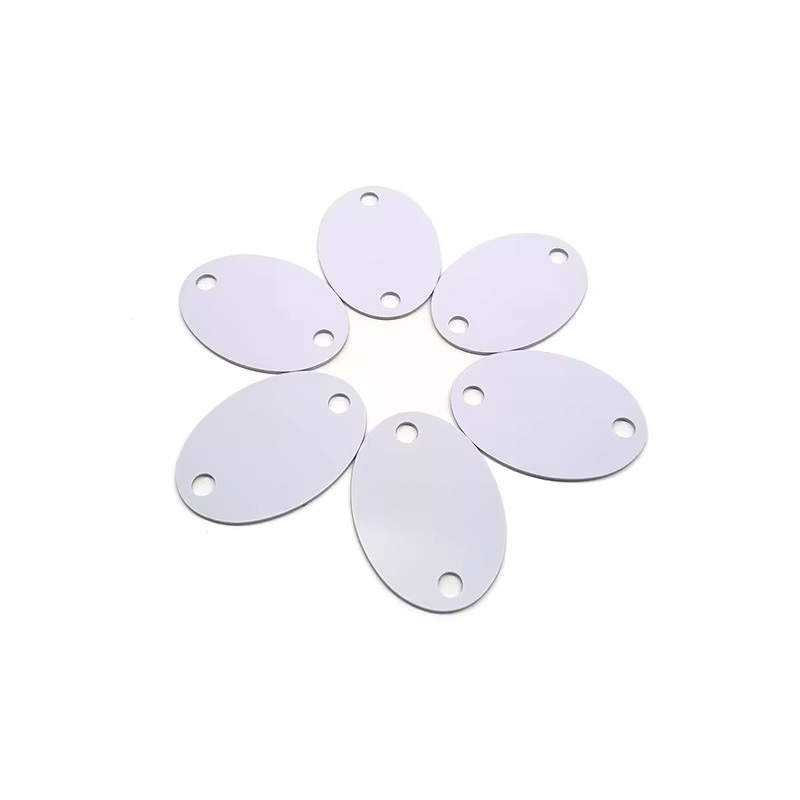

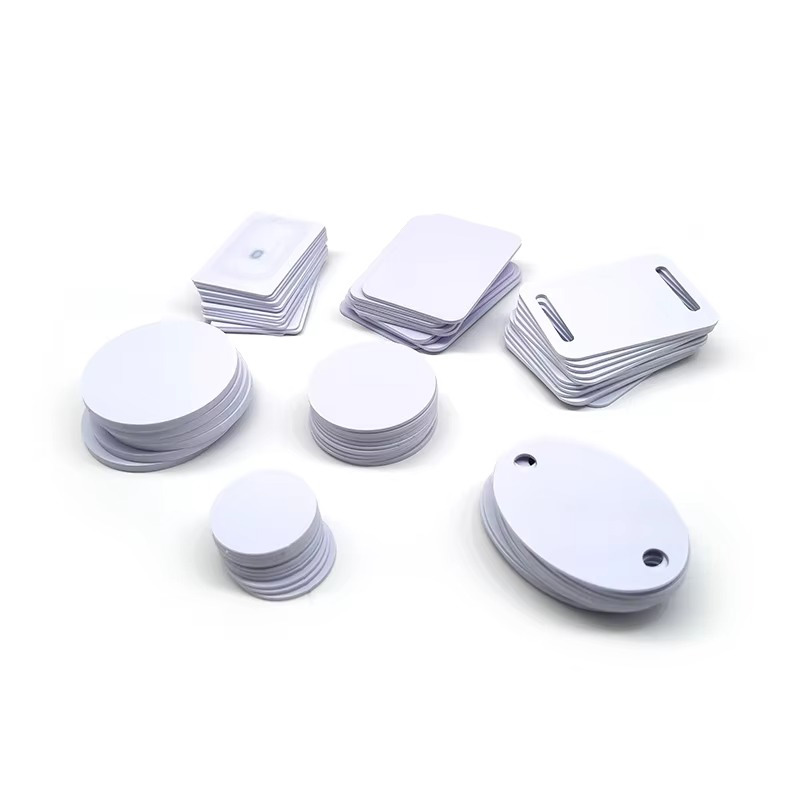

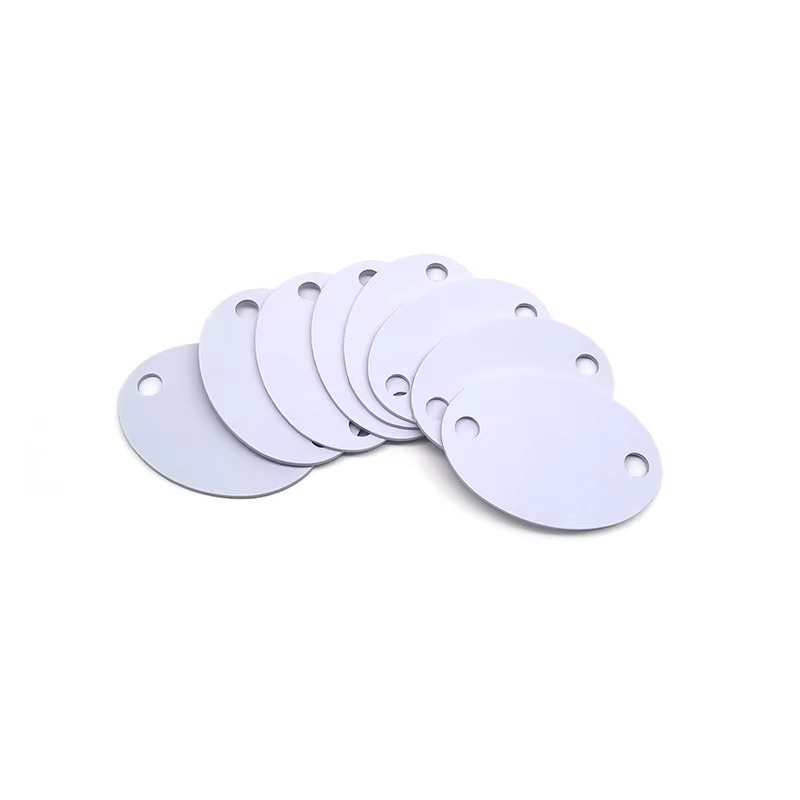

NFC Patrol Tag RFID Coin Tag
RFID coin tag is a small disc-type electronic tag, encapsulated with ABS/epoxy resin, high temperature and waterproof (IP67/68), supporting HF (13.56MHz) or UHF band. It is suitable for payment cards, access control, medical supplies tracking and asset management. The ultra-thin design is suitable for concealed installation, and it is durable and low-cost.
- Feature
- Parameter
- Details
- Related Solutions

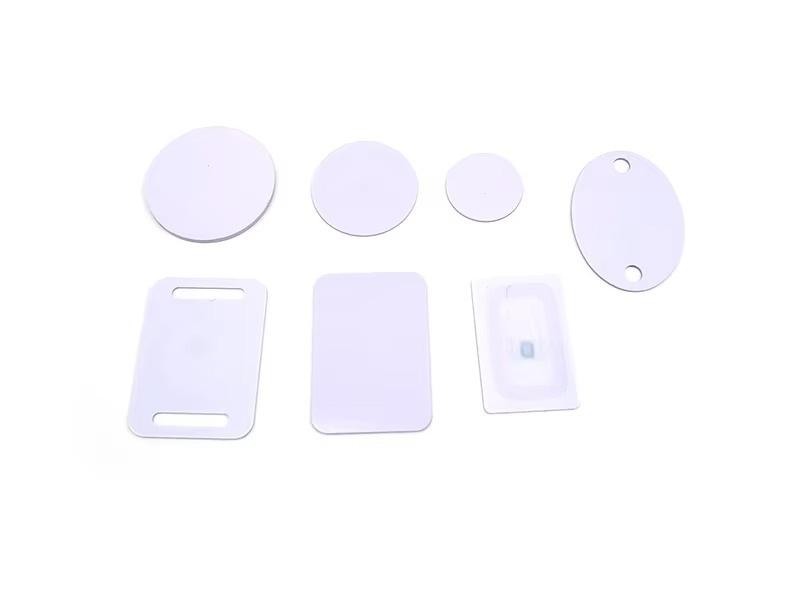

FEATURE
Waterproof, Oilproof, Shockproof
Moisture and corrosion resistant
Customized material & printing
Support data encoding
RFID token embed an RFID transponder in an ABS shell. They are waterproof, resistant to moisture or corrosion and can be used in harsh environments. Mounting is done by screwing through middle hole or using glue surface on backside. Widely used in logistics, security, postal office, airports, railways, oil fields, properties, banks, museums, yatepower, electricity, gas monitoring industries and many more. Multiple sizes, colors and chips available. Also, customization with logo, numbering and adhesive layer on backside can be done.
PARAMETER
| PROPERTY | DETAIL |
|---|---|
| Communication | RFID, NFC |
| Brand Name | ZD |
| Protocol | ISO14443A, ISO18000-6C Class1 Gen2 |
| Material | ABS / PVC / PET / Acrylic etc. |

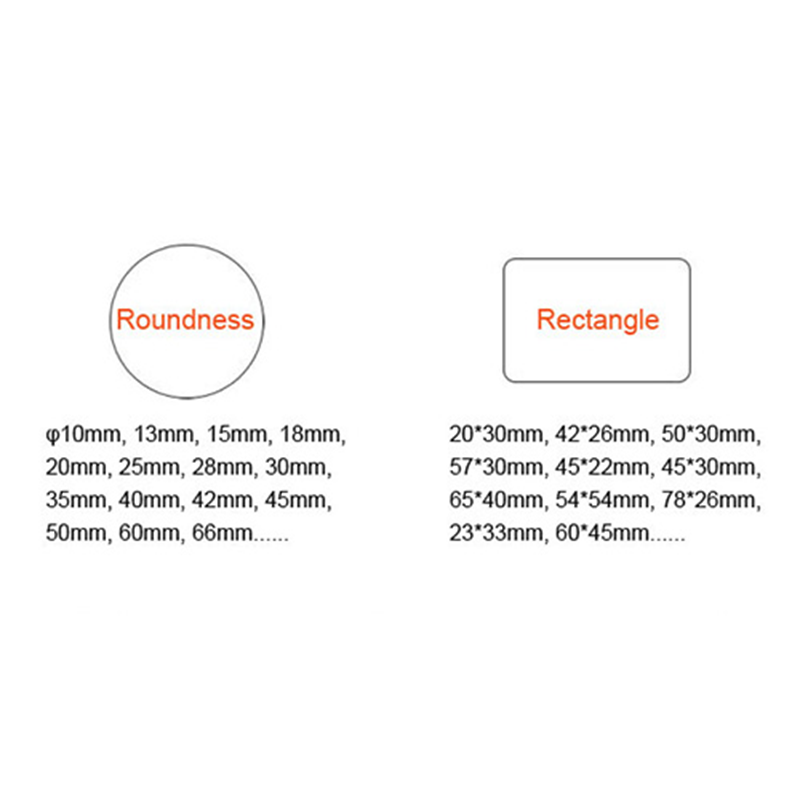

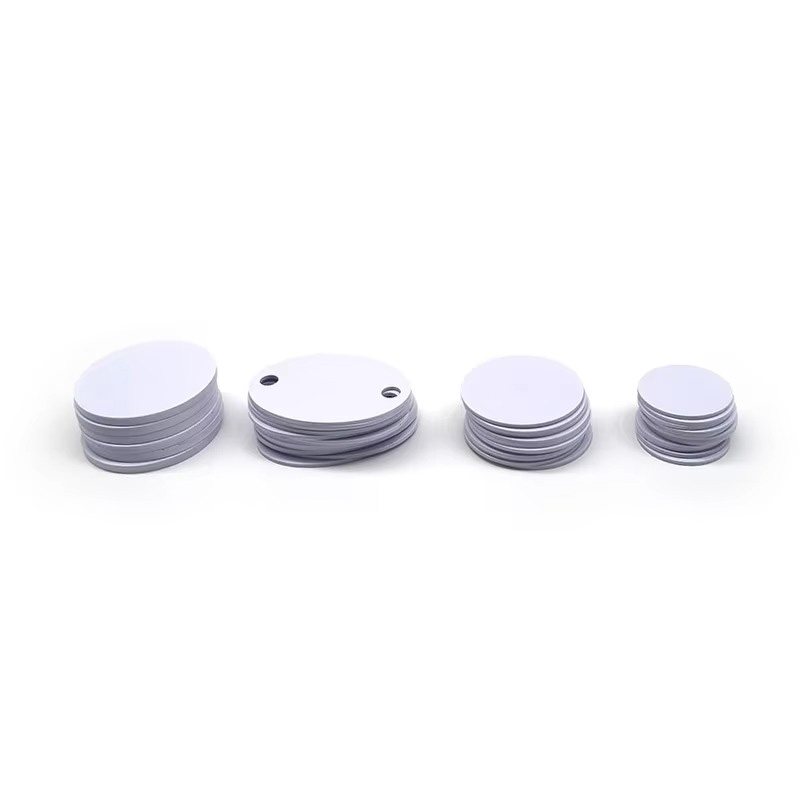

| Size | Diameter 20mm, 25mm, 30mm, 35mm or customized |
| Printing | Silkscreen printing, Laser printing etc. |

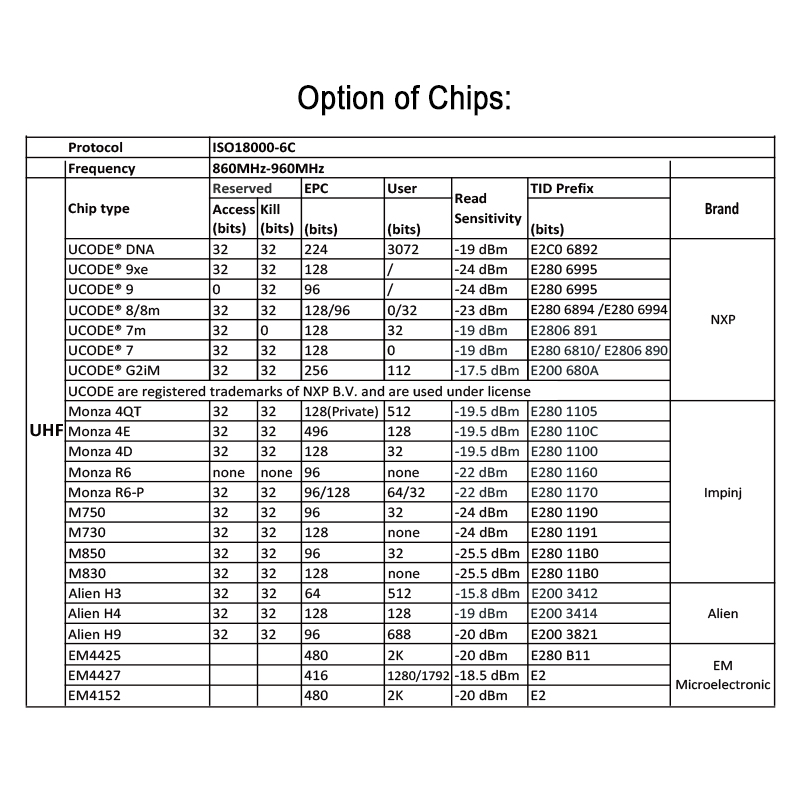

| Chip | 13.56MHz: MIFARE ClassicEV1 1K/4K; MIFARE UltralightEV1, NTAG213, ICODESLX etc. 860MHz~960MHz: UCODE8/8m, UCODE9, Monza 4OT, Monza R6, Alien H9 etc. |
| Frequency | 13.56MHz, 860~960MHz |
| Reading Distance | HF: 0~10cm; UHF: 0~3m |
| Application | Asset Management, Access Control,Contactless Payments, Transportation etc. |

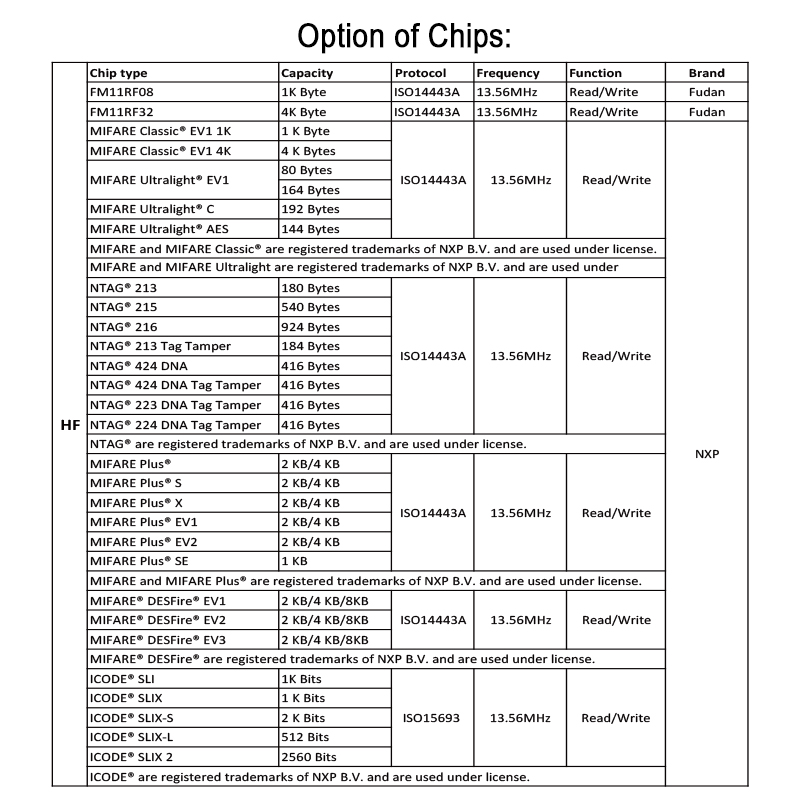

DETAILS
