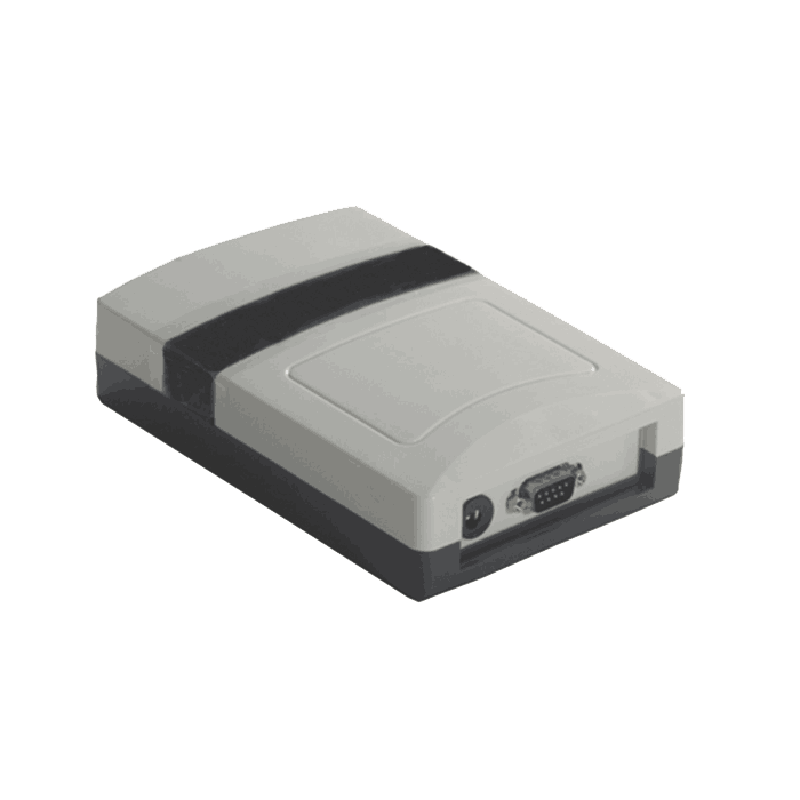

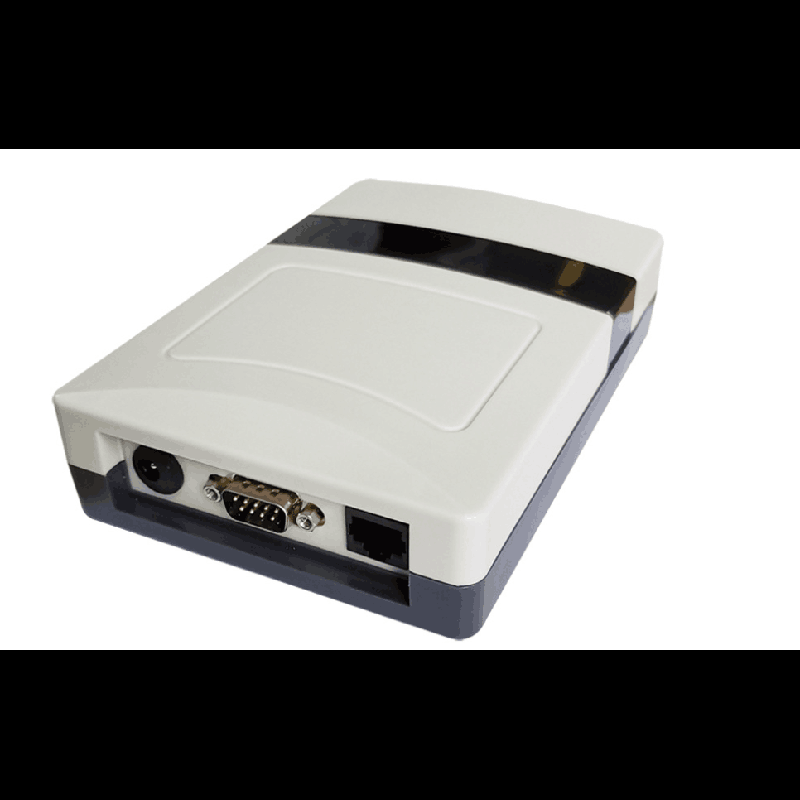

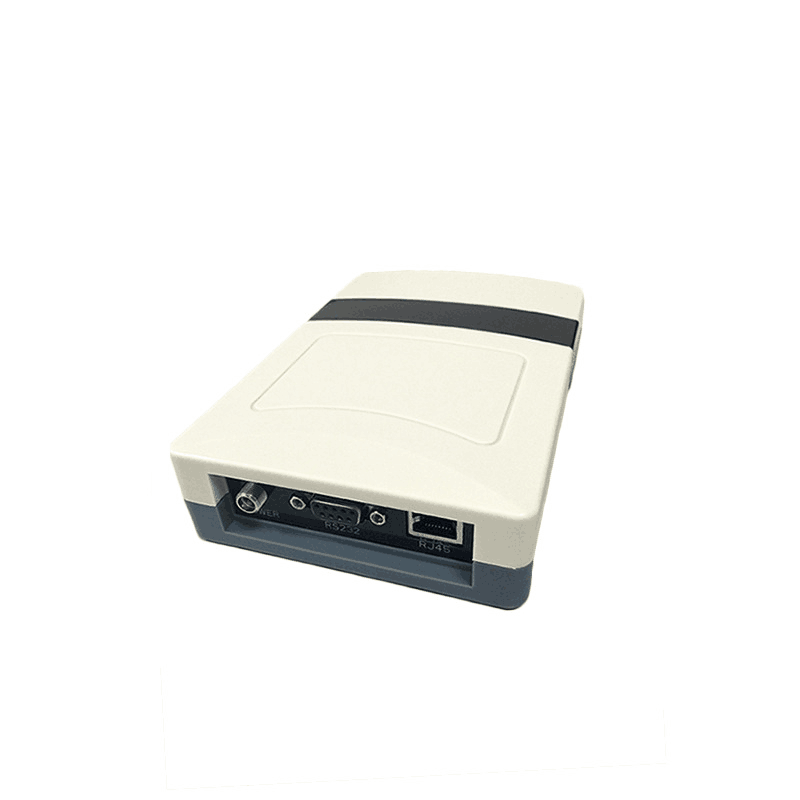

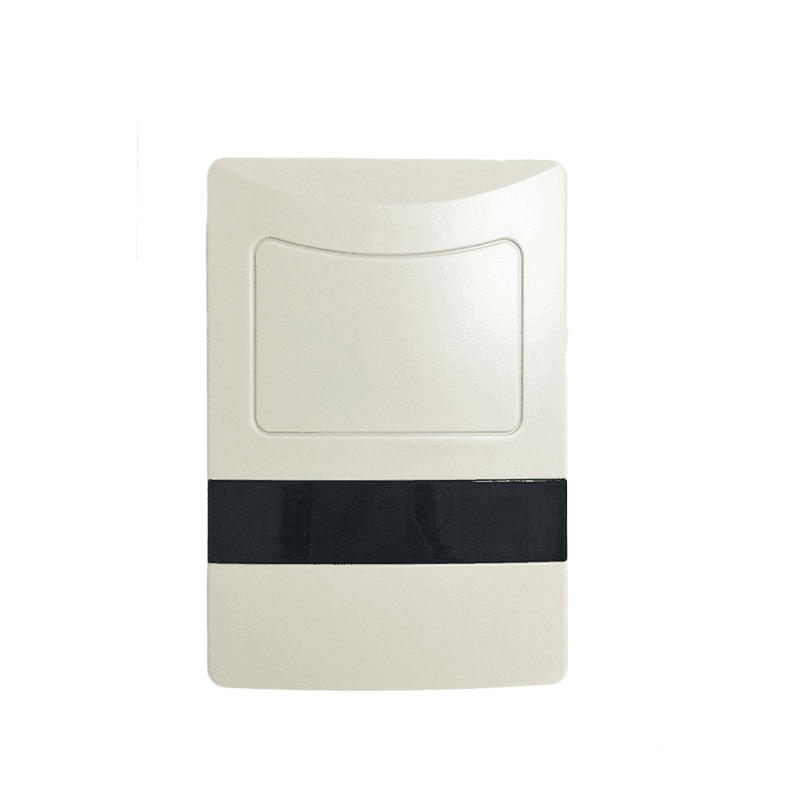

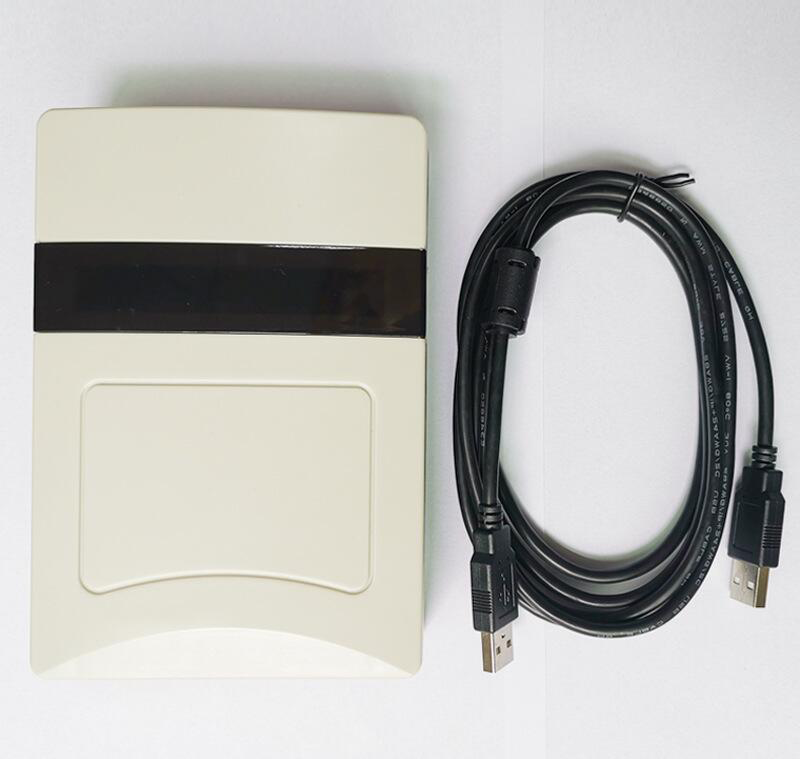

860~960MHz USB UHF RFID Desktop Reader Writer
ZK-RFID107 is a high-performance, compact UHF RFID desktop reader/writer suitable for scenarios requiring high accuracy, multi-protocol compatibility and fast reading and writing. Its built-in antenna and flexible interface design simplify deployment, while low power consumption and wide operating temperature range enhance environmental adaptability.
- Feature
- Parameter

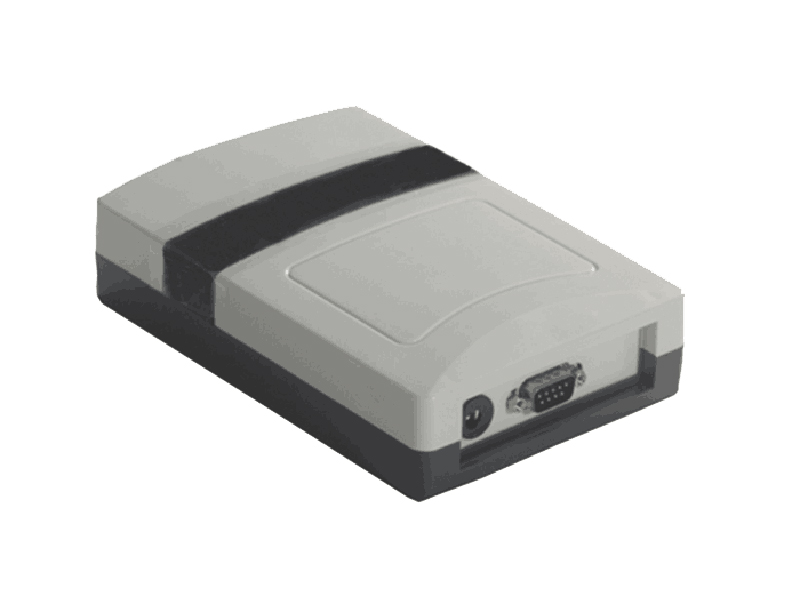

FEATURE
-
Multi-protocol compatibility:Supports ISO 18000-6C (EPC C1G2) and ISO 18000-6B standards, suitable for RFID tags in different scenarios.
-
Efficient anti-collision algorithm:Adopts advanced electronic tag collision processing algorithm to ensure high reading rate and fast reading and writing performance.
-
Low power design:Single 6V power supply, typical working current 200 mA.
-
Interface support:RS232 interface: used to communicate with computer or controller.
-
Wiegand interface: supports integration with access control system, attendance equipment, etc.
-
Flexible working mode:Supports response (interaction) mode and active mode. The output format (such as data format, baud rate, etc.) can be configured in active mode.
-
Built-in antenna:The device has built-in transceiver antenna, no external antenna needs to be installed, suitable for desktop applications.
PARAMETER
| PROPERTY | DETAIL |
|---|---|
| Interface | USB |
| Read/ Write spead | Up to 424 kbps |
| Reading distance | Up to 50mm ( depends on tag type) |
| Protocol | ISO 14443A, ISO 14443B, ISO/ IEC 18092 |
| Frequency | 13.56Mhz |
| Application Programming Interface | Supports PC/SC; Supports CT-API (through wrapper on top of PC/SC) |
| Built in Peripherals | User-controllable bi-color LED; User-controllable buzzer |
| Size | 98 x 65 x 12mm |
