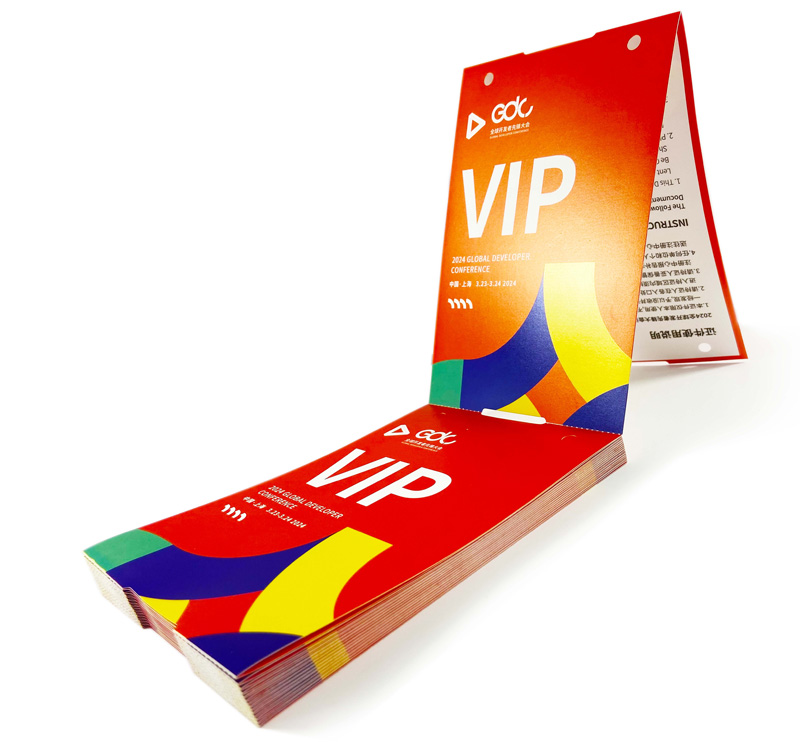

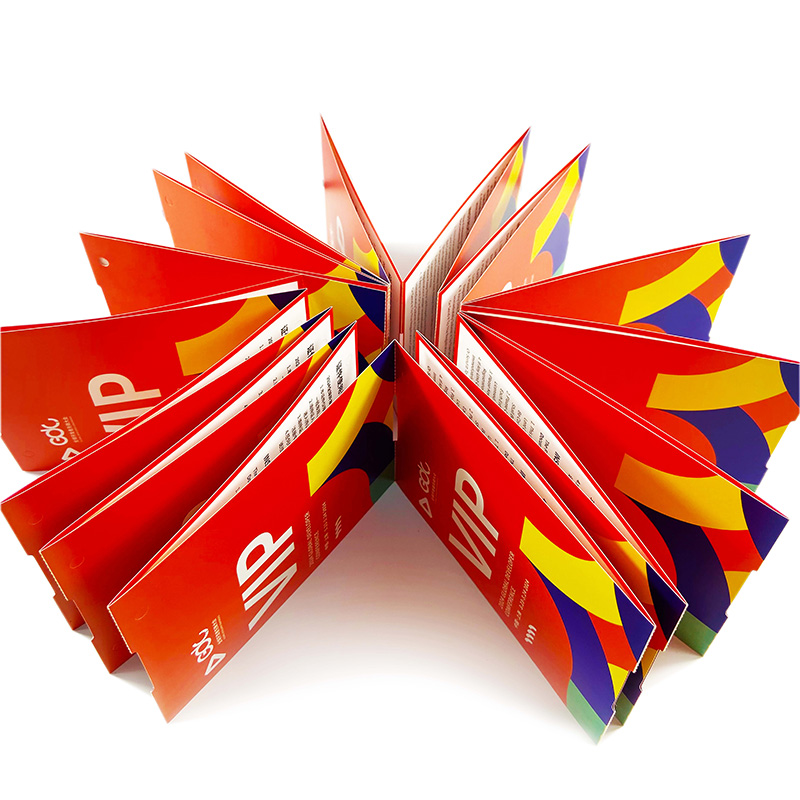

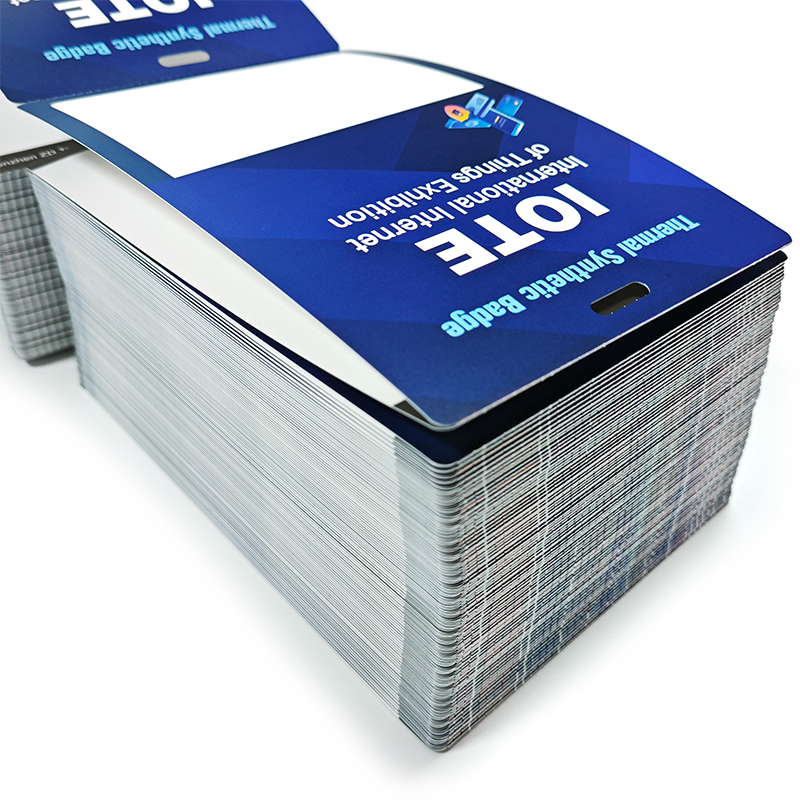

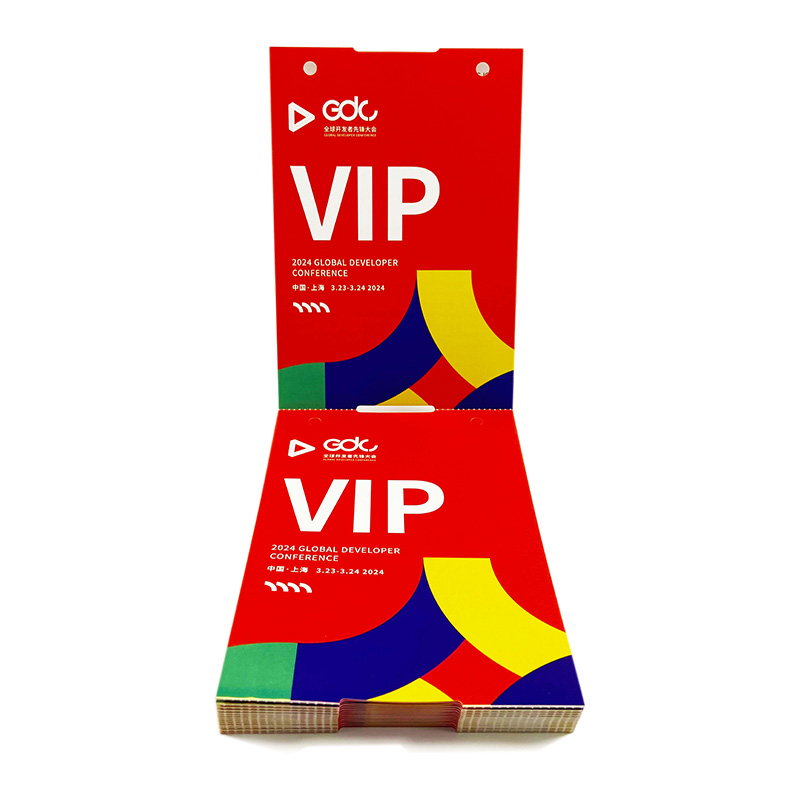

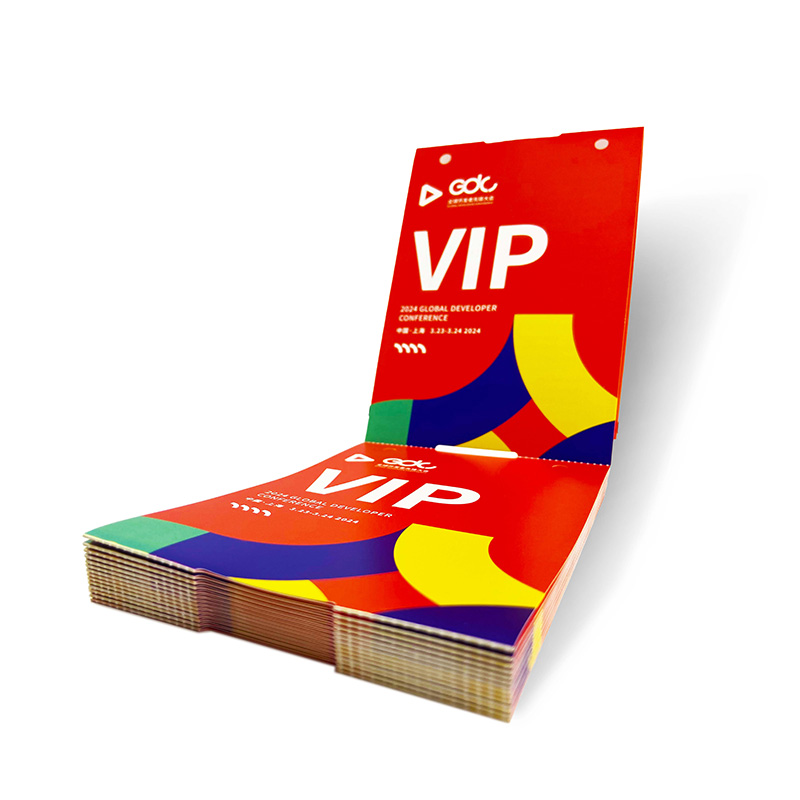

13.56MHz RFID Smart Paper Badges Card

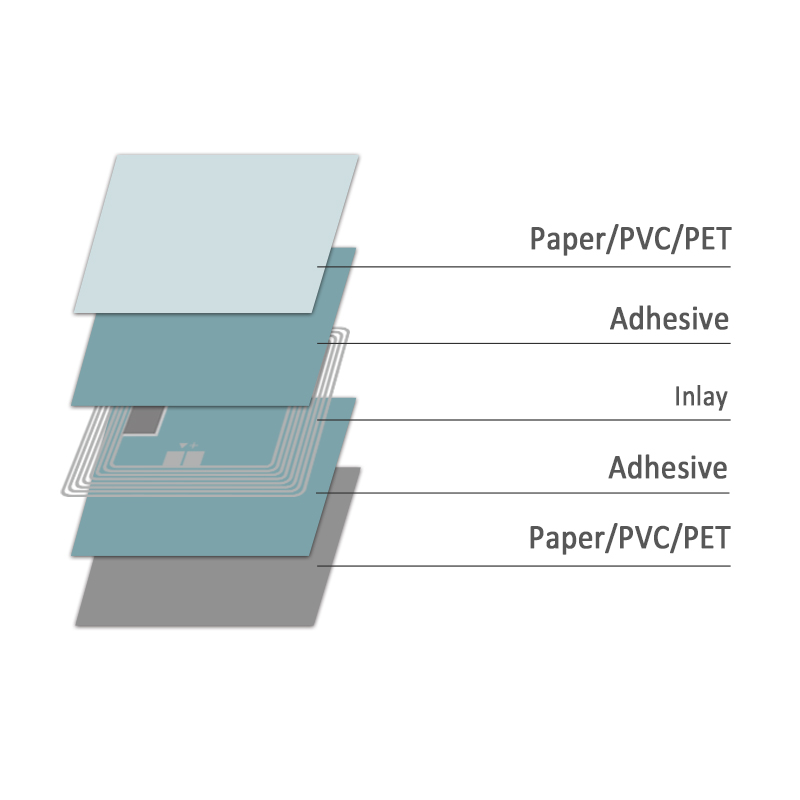

RFID ticket card is a type of electronic ticket that uses radio frequency identification (RFID) technology to store and transmit data. The RFID chip is embedded in the ticket and can be read by an RFID reader. Our RFID paper tickets strategically position the RFID antenna and chip between two paper layers. The resulting composite ticket, although robust because of its multi-layer structure, is more cost-effective than its contactless RFID chip card counterparts.

Inquiry

Feature
Parameter
Details

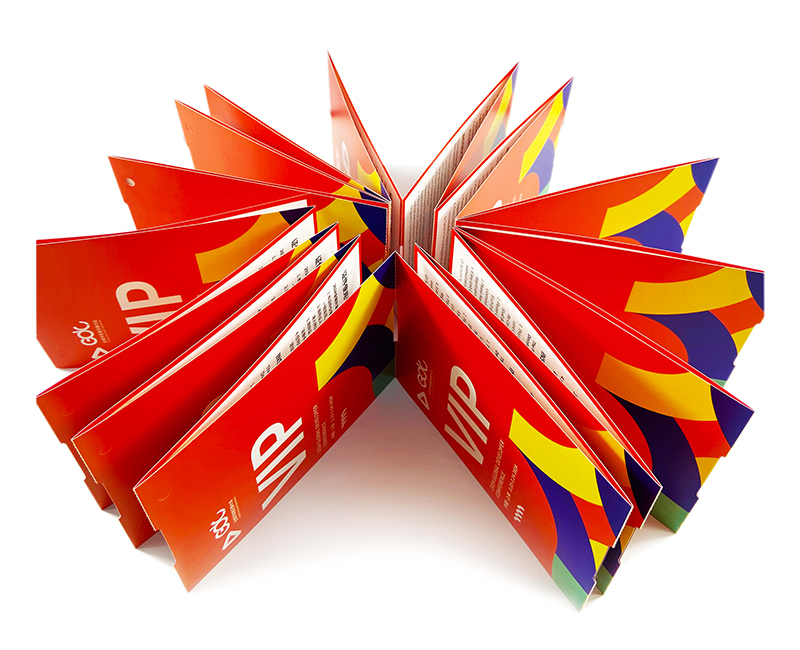

FEATURE

High Security: At the heart of RFID electronic tickets is a secure integrated circuit chip. The creation of these tags requires intricate design and manufacturing. Each tag boasts a unique ID number solidified in the chip, ensuring that it is tamper-proof and cannot be imitated. These tickets are durable, anti-fouling, and do not wear out easily.
Anti-counterfeiting Features: RFID tickets not only possess a unique ID number and password protection but also facilitate encrypted data storage, heightening their security against duplication.
Quick Ticket Verification: Hand-held ticket checkers communicate with RFID tickets wirelessly. By storing a common password in both the ticket and the checker, only those tickets with the matching password can clear the checker. The non-contact authentication process is swift, clocking in at just 0.03 seconds.
Effective Monitoring: During ticket checks, valid tickets trigger a green light on the checker and simultaneously sound an alert, ensuring efficient and accurate validation.
Efficient Management: RFID tickets can record entry and exit times, curtailing the unauthorized reuse of tickets.

PARAMETER

PROPERTY	DETAIL
Material	Coated paper, thermal paper
Size	85.5*54mm or customized
Weight	180/200/220 gsm
Frequency	13.56MHz

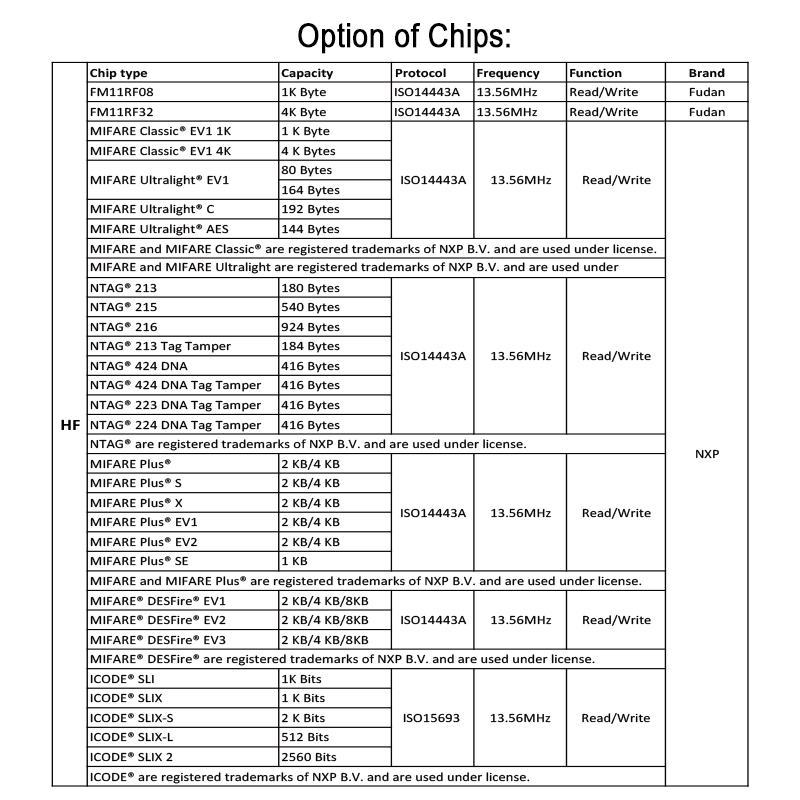

Protocol	ISO14443A
Reading distance	0-10cm
Write Endurance	100000 times
Working Temperature	-25-65°C
Data Retention Time	10 years

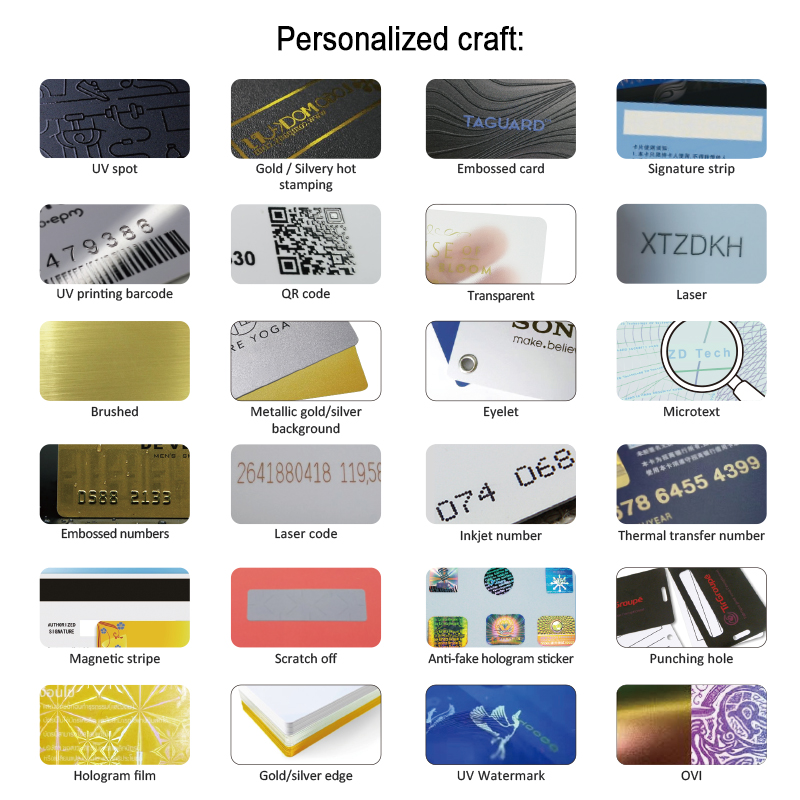

Printing Options	Silk-screen printing, Laser Engraving, CMYK full color, Pantone, etc.
Sample	Free samples are available upon request
MOQ	500pcs
